William Hackett Quad Assesmblies
The HA range of Grade 8 master links and quad assemblies are widely used for offshore rigging and lifting sets for containers and are the industry leaders globally based on:
- Available in diameters from 16mm up to 90mm and working load limits from 4.1 tonnes to 150 tonnes
- Links are manufactured from triple alloy steel in accordance with EN1677, which includes individually proof load tested to 2.5 times working load limit and 100% MPI
- MPF (Manufacturing Proof Force): 2.5 x 9.81 x Working Load Limit (kN) (min.)
- MBL (Minimum Breaking Load): WLL x Factor of Safety
- WLL (Working Load Limit):@ 45 degree to vertical
- Factor Safety: 5: 1
- Embossing: as per description column and Batch Number
- Hardness range 34-36 HRC

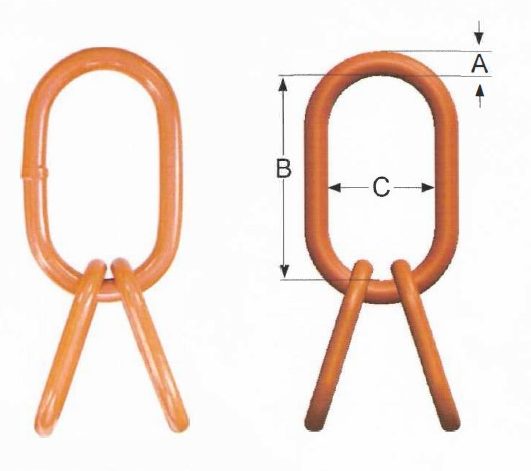

| Product Description Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Product Description | A Inches |
B Inches |
C Inches |
D Inches |
E Inches |
F Inches |
WLL lbs |
MPF kN |
MBL kN |
Mass lbs |
| HA26QA OS+ | 1-1/8″ | 10-3/4″ | 5-5/8″ | 7/8″ | 6-3/8″ | 3-9/16″ | 31,966 | 80,031 | 159,838 | 14.83 |
| HA32QA OS+ | 1-1/4″ | 10-3/4″ | 5-5/8″ | 1-1/8″ | 7-7/8″ | 4-5/16″ | 41,887 | 104,760 | 209,521 | 24.07 |
|
HA36QA OS+
|
1-7/16″ | 10-3/4″ | 5-5/8″ | 1-1/8″ | 7-7/8″ | 4-5/16″ | 57,319 | 143,428 | 286,630 | 27.22 |
|
HA40QA OS+
|
1-9/16″ | 11″ | 6″ | 1-1/4″ | 10-5/8″ | 5-1/2″ | 67,240 | 168,381 | 336,312 | 40.78 |
|
HA45QA OS+
|
1-3/4″ | 12-3/4″ | 7″ | 1-7/16″ | 10-5/8″ | 5-1/2″ | 88,184 | 220,537 | 441,073 | 55.31 |
|
HA50QA OS+
|
2″ | 14″ | 7-3/4″ | 1-3/4″ | 12-5/8″ | 6-7/8″ | 112,434 | 281,235 | 562,469 | 90.14 |
|
HA65QA OS+
|
2-9/16″ | 16-1/8″ | 8-5/8″ | 2″ | 13-3/4″ | 7-11/16″ | 165,345 | 413,648 | 827,068 | 145.72 |
|
HA75QA OS+
|
3″ | 18″ | 10″ | 2-9/16″ | 16-1/8″ | 8-11/16″ | 220,460 | 551,456 | 1,102,683 | 253.57 |
